Product Details

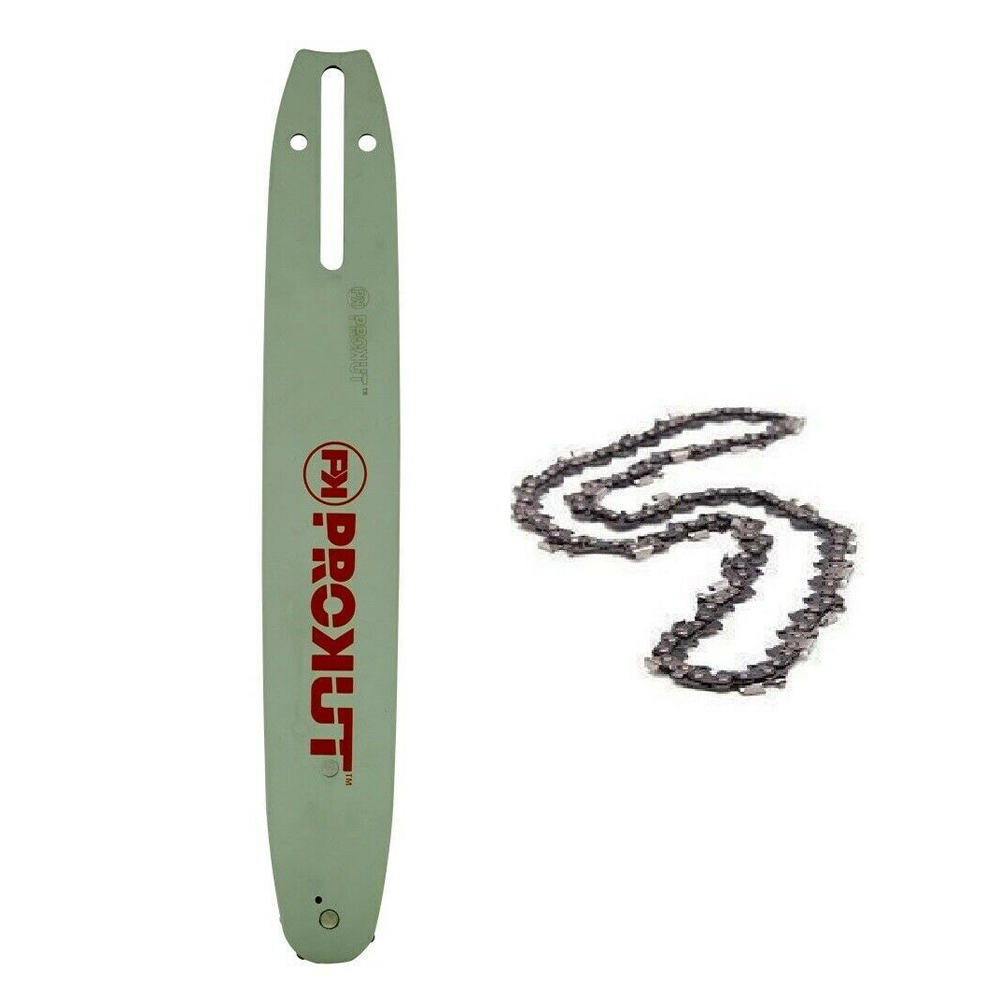

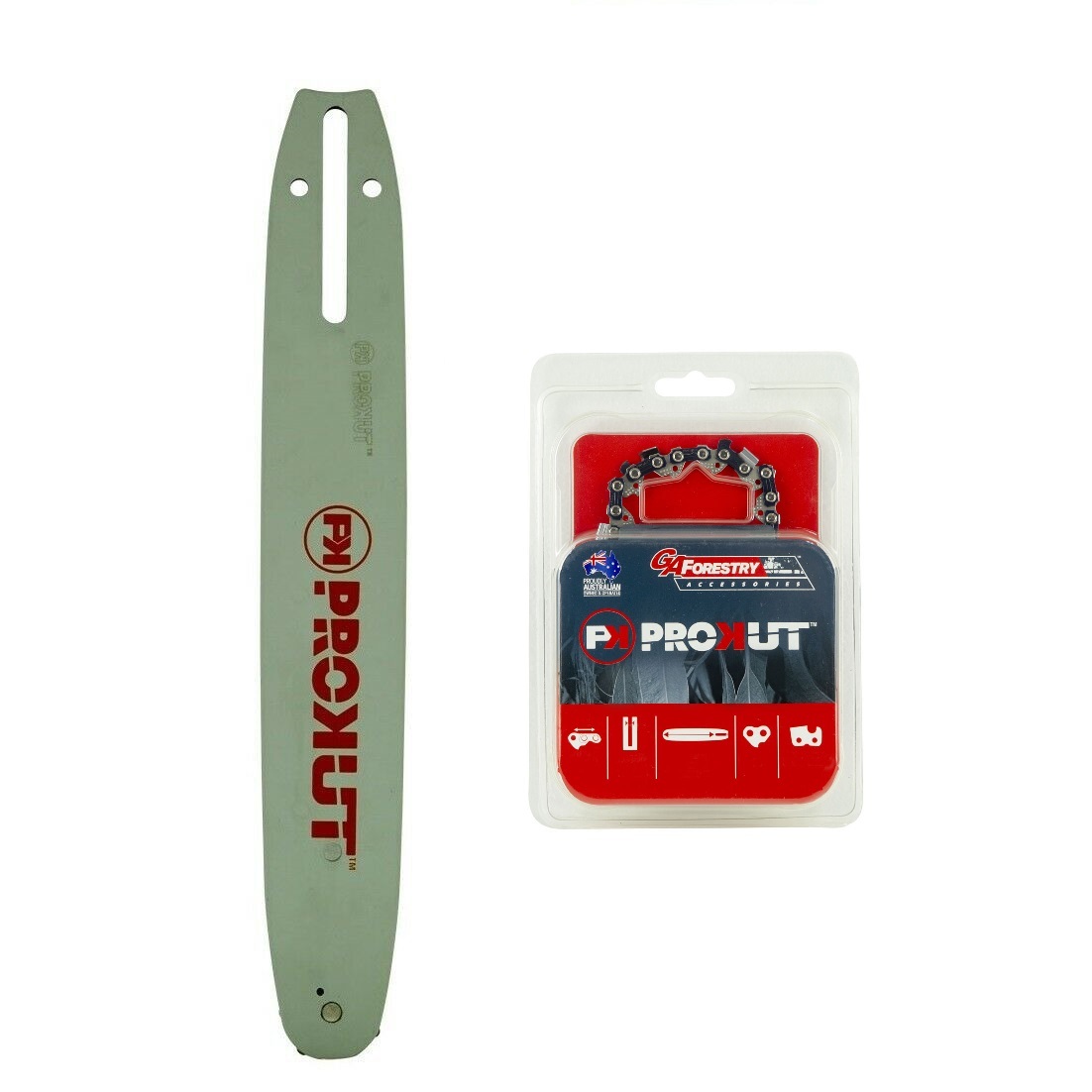

PROKUT Bar and Chain Combo

16 Inch x 3/8 Low Pro x .050 x 56 Drive Link or 57 Drive Link

AA Mount, Consumer Laminated Single Rivet Sprocket Nose Guide Bar

Features:

  • Consumer Laminated single rivet sprocket nose guide bar
  • Small radius nose helps reduce kickback
  • Excellent rail strength for long life
  • Light-weight slim contour, for excellent manoeuvrability
  • Narrow cut (kerf) cutting systems require less power from the saw than standard cutting systems
  • All PROKUT guide bars are reversible for longer life. 16 Inch 40 cm 3/8 Inch Low Profile Consumer Laminated single rivet sprocket nose guide bar 20S / Semi-Chisel AA .050 Inch 56 (most) or 57 (some, as listed above) 7 Tooth sprocket nose 38 cc to 62 cc (2.3 to 3.8 cu. in.)

Fits: 16 Inch Chainsaw Models

Brushranger

  • CS4020
  • CS4210

These models use a 56 drive link chain

Dolmar

  • 100, 101, 102, 103, 104, 105, 106, 108, ES-161, ES-171, ES-173 A, PS-32, PS-34
  • PS-35, PS-45, PS-340, PS-341, PS-350, PS-351, PS-400, PS-401, PS-420, PS-421
  • PS-3300 TH, PS-3410 TH, PS-3410 TH TLC

These models use a 56 drive link chain

Echo

  • 300, 328, 350,CS-280, CS-290, CS-300, CS-300EVL, CS-301, CS-302 (After Serial # 0015304)
  • CS-302S, CS-303T, CS-305, CS-306, CS-310, CS-315, CS-320TES, CS-330EVL, CS-330
  • CS-330MX4, CS-330T, CS-340, CS-341, CS-345, CS-346, CS-350TES, CS-350WES
  • CS-351 (After Serial # 0112195), CS-352, CS-355T, CS-360, CS-360T, CS-370, CS-370T
  • CS-400, CS-2600, CS-2600ES, CS-2700ES, CS-3000, CS-3400, CS-3450, CS-3500
  • ECS-2000, ECS-3000

These models use a 56 drive link chain

Efco

  • 132, 132S
  • MT 2600
  • MT 3600, MT 3700, MT 3750
  • MT 4000, MT 4100

These models use a 56 drive link chain

Efco

  • 137
  • MT350
  • MT3500

These models use a 57 drive link chain

Homelite

Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .325 Inch pitch chain.

  • 20, 20AV, 23, 23AV, 27, 3300, 3314, 3316, 3318, 3350, 3550, 3800, 3850, 4500, 4550
  • CS-40, CSP3314, CSP3316, d3300, d3350b, d3850, d3850b, i3350b, PS33, Ranger
  • UT10514, UT10516, UT10517, UT10530, UT10530A, UT10540, UT10548, UT10549
  • UT10560, UT10568, UT10564, UT10566, UT10569, UT10580, UT10584, UT10586
  • UT10588, UT10589, UT10640, UT10660, UT10680, UT10901, UT10901A, UT10926
  • UT10947A, UT10947D, UT10947E, UT43100, UT43102, UT43103, UT43120, UT43122
  • Z3850, ZR10540, ZR10560, ZR10580

These models use a 56 drive link chain

Husqvarna

Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .325 Inch pitch chain.

  • 23, 36, 41, 136, 137, 137 e, 141, 142, 142 e, 235, 235 e, 236, 236 e, 240, 240 e, 243
  • 249, 315 Electric, 318 Electric, 320 Electric, 321 Electric

These models use a 56 drive link chain

John Deere

  •  25EV, 28, 28V, 30, 30V, 35, 35EV, 40V, 200CS, 230CS, CS36, CS36LE, CS40, CS40LE, CS40V, J3816

These models use a 56 drive link chain

Jonsered

Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .325 Inch pitch chain.

  • 2014, 2016, 2033T, 2035, 2036, 2036 TURBO, 2040, 2040 TURBO, 2041, 2045, 2137
  • 2138, 2150, CS2135, CS2137, CS2138, CS2138S, CS2152W, CS2238S

These models use a 56 drive link chain

Makita

  • 5012B, 5014B, 5014NB, 5016B, 5016NB, DCS 34, DCS 330S, DCS 330TH, DCS 340
  • DCS 341, DCS 390, DCS 390S, DCS 400, DCS 401, DCS3416, DE3435
  • EA3201S35B, EA4300F40B, MDE3435, MDE3440, UC3030A, UC3500
  • UC3530A, UC4000, UC4030A

These models use a 56 drive link chain

McCulloch

  • EB356A, EB358, MAC CAT 438, MC3516, MC4218AV, MCC1435A, MCC1635A, MCC1840B
  • MP406, MS354A, MS 4016P, MS 4018P, MXC1840D, MXC1840DK

These models use a 56 drive link chain

MTD

  • 125
  • 136
  • 140S

These models use a 56 drive link chain

Oleo-Mac

  • 932C
  • 936F
  • 937
  • GS260

These models use  a 57 drive link chain

Parklander

  • GL3800M-16

These models use a 56 drive link chain

Poulan / Poulan Pro

  • 25A, 180, 190, 200, 205, 210, 220, 221, 222, 225, 230, 235, 236, 240, 250, 255
  • 260, 262, 1220, 1630, 1634, 1800, 1838, 1900, 1900LE, 1950, 1950LE, 1975
  • 1975LE, 2000, 2025, 2050, 2050AVWT, 2055, 2055LE, 2075, 2075C, 2150
  • 2150AV, 2155, 2160, 2175, 2250, 2250LE, 2300, 2350, 2375, 2375AVWT
  • 2375LE, 2450, 2450C, 2550, 2550LE, 2555, 3314, 3314 WS, 3314 WSA, 3416, 3516
  • 3516 PR, 3516AVX, 3816, 3816AV, 3818, 4018, 4018WT, 4218, 4218AV, 4218AVX
  • E14E, E16E, ES350, ES400, Micro 25 (XX Series & XXV Series), S23, S25, S25AV
  • S25CVA, S25D, S25DA, S35 (After modifying from 1/4 Inch to 3/8 Inch pitch)

Electric

Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .325 Inch pitch chain.

  • 400E, 1420, 1425, 1625, 2100, 2400, 2500, 2600, Patriot 1900, PP3516AVX, PP3616
  • PP3816, PP4018, PP4618, Wild Thing, Woodshark

These models use a 56 drive link chain

Redmax

  • G250, G300AVS, G300TS, G310TS, G2500, G2500TS, G3100TS, G3200EZ
  • G3300EZ, GZ3500T, GZ380, G3800, G3800AVS, GZ400, GZ4000

These models use a 56 drive link chain

Ryobi

  • PCN3335

Electric

  • ECR1835, ECR1935, ECR2040
  • RGS3214, RYS3816

These models use a 56 drive link chain

Shindaiwa

  • 90, 100, 110, 120, 140, 150 (Electric), 160 (Electric), 362T

These models use a 57 drive link chain

Shindaiwa

Please check your saw carefully prior to ordering, some of the above saw models were also released fitted with a .325 Inch pitch chain.

  • 90, 100, 110, 120, 140, 150 (Electric), 160 (Electric), 362T

These models use a 57 drive link chain

Sina

  • SCS3800I

These models use a 56 drive link chain

Skil

  • 1620, 1622, 1624
  • 1631 Type 3, 1634, 1635, 1636

These models use a 56 drive link chain

Tanaka

  • ECS-35, ECS-290, ECS-300, ECS-320, ECS-330, ECS-350, ECS-351, ECS-355, ECS-356
  • ECS-370, ECS-405, ECS-3301, ECS-3351, ECS-3401, ECS-3500
  • TCS-2801S, TCS-33EB, TCS-3301, TCS- 3301PFS, TCS-3351PFS, TCS-3401

These models use a 56 drive link chain

Wen / Wagner

  • 3814
  • 4014

These models use a 56 drive link chain

Worx

  • WG300
  • WG303
  • WG304

These models use a 57 drive link chain

Zenoah

  • G250, G300AVS, G300TS, G310TS, G2500, G2500TS, G3100TS, G3200
  • G3200EZ, G3300, G3300EZ, GZ3500T, GZ380, G3800, G3800AVS, GZ400, GZ4000

These models use a 56 drive link chain

OEM:

  • 501 95 92-56
  • 160SDEA041

Note:

Use with our semi-chisel chain loop part number GAF20S056DL for 56 drive link applications or for 57 drive link applications use our part number GAF20S057DL. For a semi-professional laminated multi-rivet sprocket nose version of this guide bar use our part number GAFAA1620EL. For a 56 drive link bar and chain combo to suit the above models use our part number GAF105700. Replaces our part number OMK160SDEA041. PROKUT, GA Forestry Accessories Bar, guide bar, laminated guide bar, sprocket nose guide bar.
