Product Details

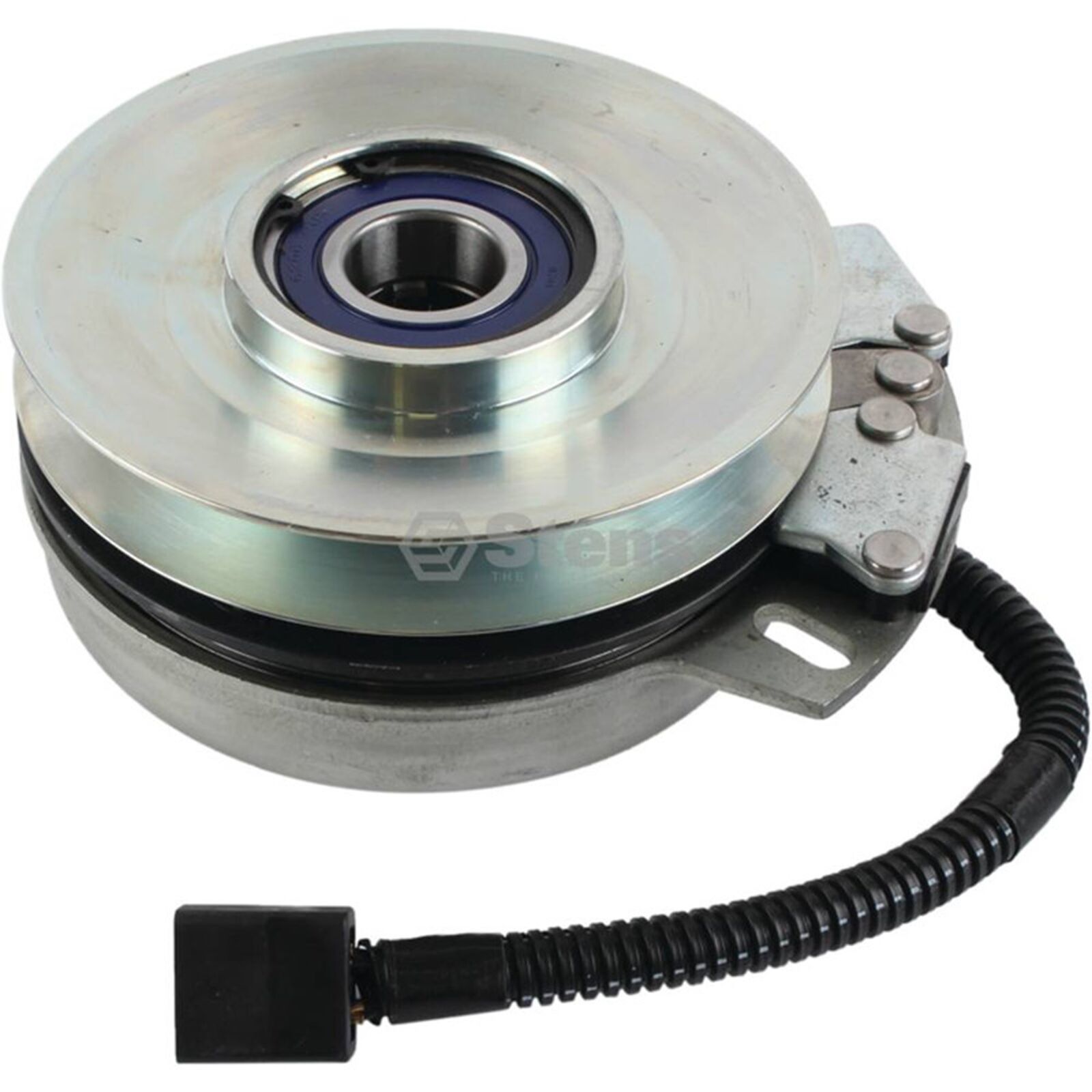

Electric PTO Clutch Assembly

For Warner and Cub Cadet Ride on Mower Models

Standard pack: 1

Features:

• Manufactured by an OEM supplier
• 1 1/8 Inch (28.575 mm) Inside Diameter Hub
• 6 Inch (152.4 mm) Outside Diameter Precision machined pulley
• 125 ft. lbs. torque
• Suitable for use with 1/2 Inside ("A" or 68 series) or 5/8 Inside ("B" or 69 series) belts
• Operates in a counter-clockwise direction (when viewed from the pulley side of the clutch)
• Uses cool coil technology
• High temperature bearings
• Replaceable pulley bearing
• Integrated, water tight wiring harness

Measurements:

• 3 Inch, (76.2mm) Height
• 1 1/8 Inch, (28.575mm) Inside Diameter
• 6 Inch, (152.4mm) Pulley Diameter

Fits: Ride-on lawn mower models

44 Inch cut Cub Cadet

• 2186 (model 13A-288L603 year 2000 fitted with a Kohler 18HP engine - hydro models)
• 2518 (model 13A-208L100 year 2003 fitted with a Kohler 18HP - hydro models)
• GT2186 (model 13A-298L710 year 2004 fitted with a Kohler 20HP - hydro models)
• GT2544 (20HP model 13A-2D7L630 year 2005)

46 Inch (1168 mm) Cub Cadet

• 2185 (model 13A-288L603 year 1997 fitted with a Kohler 18HP - hydro models with s/n 359000 and lower)

48 Inch (1220mm) cut Cub Cadet

• 2185 (model 13A-288L603 year 1997 fitted with a Kohler 18HP - hydro models with s/n 359000 and lower)
• 2518 (model 13A-208M100 year 2003 fitted with a Kohler 18HP - hydro models)
• GT2186 (model 13A-298L710 year 2004 fitted with a Kohler 20HP - hydro models)

50 Inch (1270mm) cut Cub Cadet

• GT2550 (21HP model 13A-2C7P630 year 2005)

Replaces OEM:

Cub Cadet / MTD

• 717-04180
• 717-3403
• 917-04180
• 917-3403

Warner

• 5219-52
