Product Details

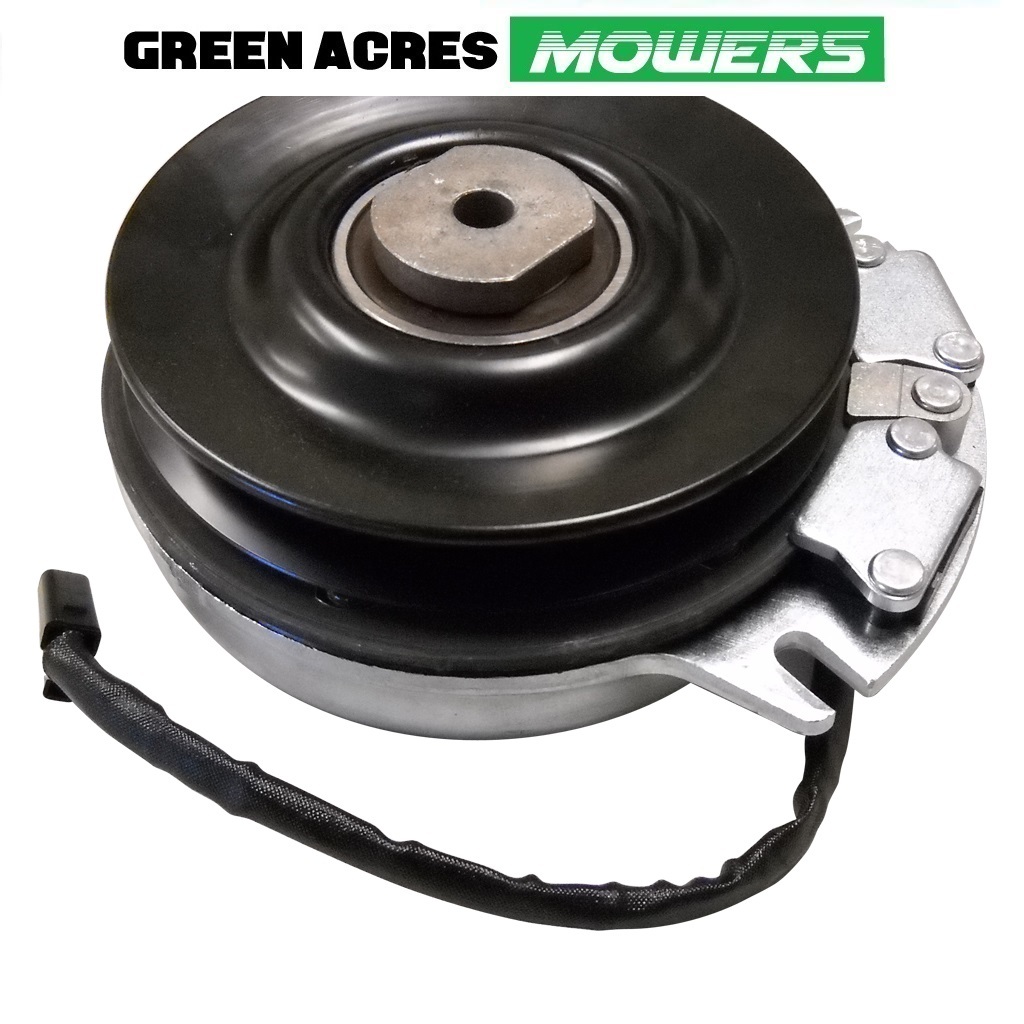

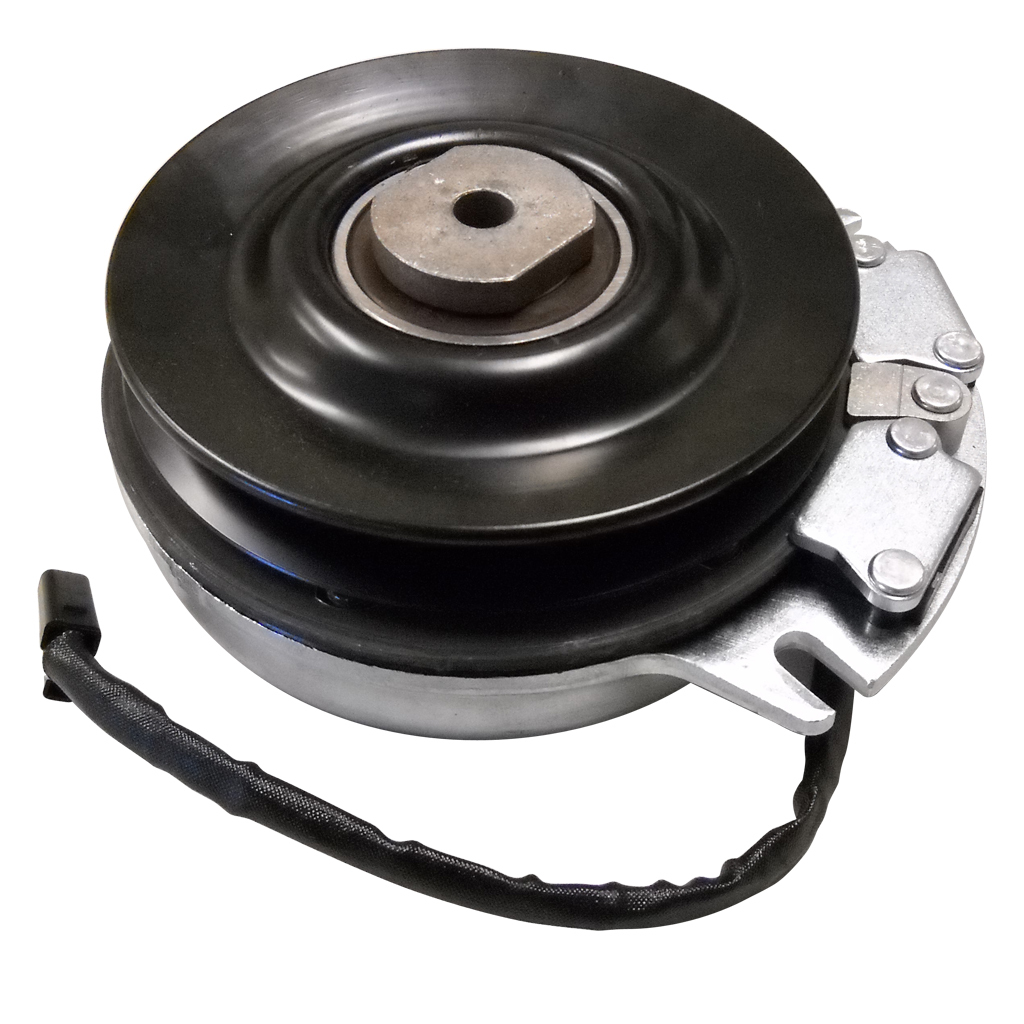

Heavy Duty Electric PTO Clutch Assembly

For Gravely, Great Dane, Warner

Standard pack: 1

Features:

  • Manufactured by an OEM supplier
  • 1 1/8 Inch (28.575mm) Inside Diameter Hub
  • 6 Inch (152.4mm) Outside Diameter Precision machined pulley
  • 175 ft. lbs. torque
  • Suitable for use with 1/2 Inch ("A" or 68 series) or 5/8 Inch ("B" or 69 series) belts
  • Operates in a counter-clockwise direction (when viewed from the pulley side of the clutch)
  • Uses cool coil technology
  • High temperature bearings
  • Replaceable pulley bearing
  • Integrated, water tight and impact resistant wiring harness

Measurements:

  • 3 1/4 Inch, (82.55mm) Height
  • 1 1/8 Inch, (28.575mm) Inside Diameter
  • 6 Inch, (152.4mm) Pulley Diameter

Fits: Models

  • Gravely selected ride-on lawn mower and zero turn radius (ZTR) ride-on models

Great Dane selected zero turn radius (ZTR) ride-on models including but not limited to the following models

  • 52 Inch (1320mm) cut Chariot Brutus (model GBKH2752S year 2006)
  • 61 Inch (1550mm) cut Chariot Brutus (model GBKH2761S year 2006) fitted with 27HP Kohler engines

Replaces OEM:

Gravely

  • 09232700
  • 9266700

Great Dane

  • GDA10122

Warner

  • 5218-31
  • 5218-94
