Standard Bar Blades for 42" Cut ZTR Ride on Lawn Mower Models 1737816 1737816BM

Product Details

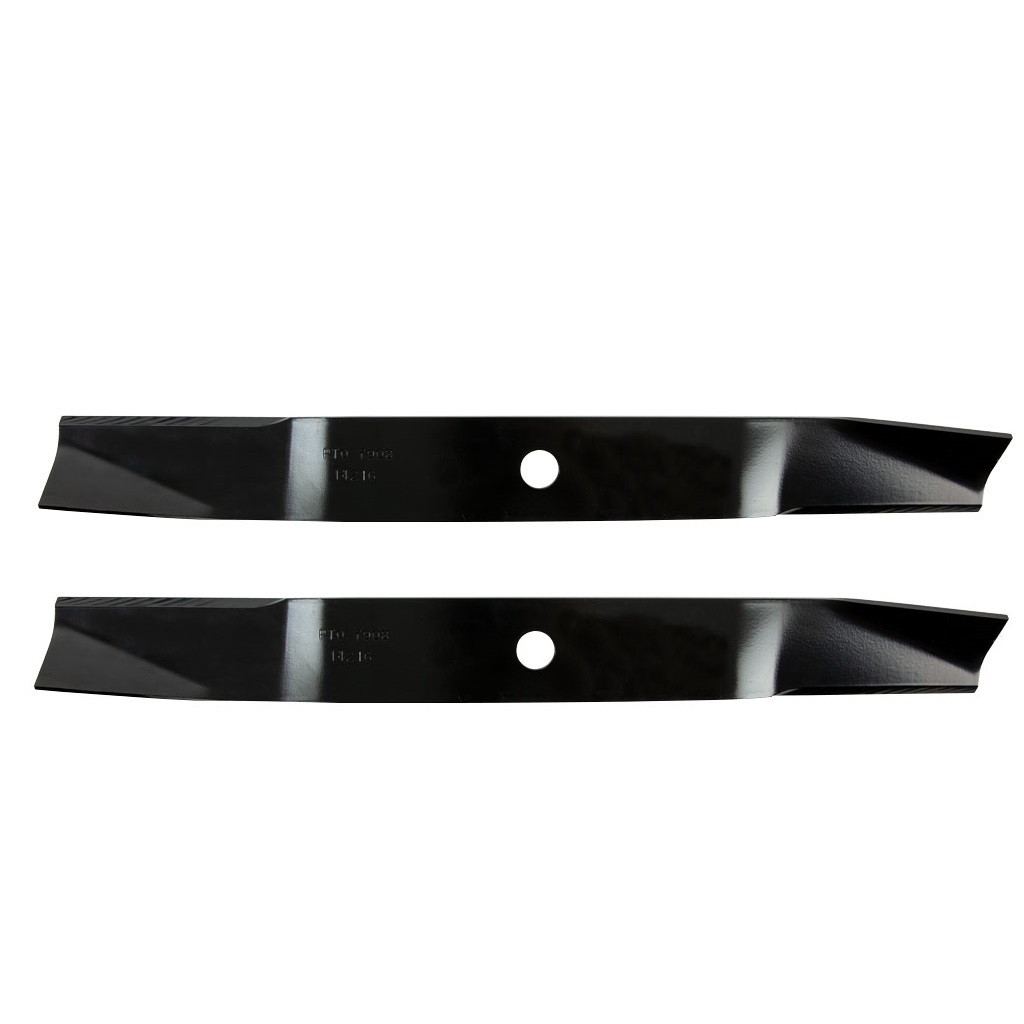

Standard Bar Blades X2

Centre Hole Type: Round

2 blades required for 42 Inch cut

Measurements:

Length: 21 3/16 Inch, 538.16mm
Width: 2 1/4 Inch, 57.15mm
Thickness: .170 Inch, 4.318mm
Centre Hole Diameter: .802 Inch, 20.37mm

Fits: Models

42 Inch (1067mm) Cut Simplicity selected ride-on lawn mower models
42 Inch (1067mm) Cut Snapper selected ride-on lawn mower models

42 Inch (1067mm) Cut Craftsman zero turn radius (ZTR) ride-on lawn mower models

CR28006 (model 28006, years 2011 - 2012)

42 Inch (1067mm) Cut Murray ride-on lawn mower models

MT175420H (17.5 hp model 2691000, fitted with deck number 1696084, year 2012)

42 Inch (1067mm) Cut Parklander (by Murray) ride-on lawn mower models

MT175420H (17.5 hp model 2691000, fitted with deck number 1696084, year 2012)

42 Inch (1067mm) Cut pressed deck Victa zero turn radius (ZTR) ride-on models

LT 19.5/42 [V125] (19.5 hp model 2691005, fitted with deck number 1696085, years 2012 to 2013, Note: after serial number 2014915223. Please note: there is more than one blade used on these models. These models can be identified as having the spindle housing mounted on top of the deck)
NXT 19.5/42 [NXT19542, VXT19542] (19.5 hp model 2690919 fitted with deck number 1695927, years 2010 to 2014)
SPX 20/42 [SPX2042] (20 hp models 2691152, 2691152-00, 2691152-01 and 2691152-02, year 2013)
SPX 22/42 [SPX2242] (22 hp model 2691236-00, year 2014)
SPX 23/42 [SPX2342] (23 hp model 2691235-00, year 2014)
V125 [LT 19.5/42] (19.5 hp model 2691005, fitted with deck number 1696085, years 2012 to 2013, Note: after serial number 2014915223)
V125 [23 /42] (23 hp model 2690917-01 Note: after serial number 2014915223 Please note: there is more than one blade used on these models, both of these V125 models can be identified as having the spindle housing mounted on top of the deck) ride-on lawn mower models and VZ285 [21 /42, ZTR285, 285ZTR] (21 hp model 7800823, years 2011 to 2013)
VZT 20/42 [VZT2042] (20 hp models 2691155 and 2691155-00, years 2013, 2014), VZT 22/42 [VZT2242] (22 hp models 2691379-00 and 2691379-01)

Replaces OEM:

1737816
1737816BM
1737816BMA
1737816BMYP
